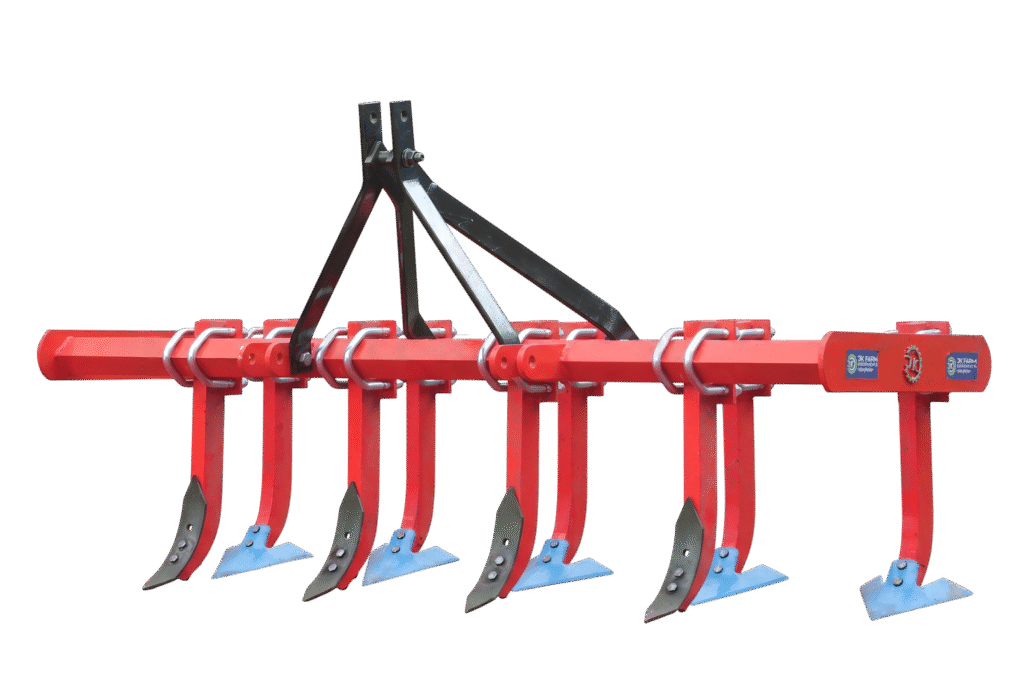

Nine Tyne Cultivator​

The Nine Tyne Cultivator is a heavy-duty tillage implement specially designed for large-scale farming and tractors above 50 HP. With a substantial equipment weight of 320 kg and overall dimensions of 2160×890×1145 mm, it ensures deep soil engagement and wide field coverage in fewer passes, saving time and fuel. Constructed with a rugged 65×65×8 mm angle frame and 8 mm thickness, the cultivator delivers excellent durability and resistance to bending or wear, even in tough field conditions.

Start Journey With J. K. Fam Equipment's

    Need Help ! Contact Us at - +91 84219 47 388

    Nine Tyne Cultivator​

    Weed and Residue Removal

    Before sowing a new crop, it helps clear weeds, previous crop stubble, and debris, saving manual labor and reducing time spent on land cleaning.

    Soil Aeration and Moisture Retention

    By penetrating deeply into the soil, it improves air and water circulation in the root zone. This enhances moisture retention and promotes healthier root development.

    • Features

    Higher Tyne Count

    Heavier & Stronger Build​

    For High HP Tractors

    Thicker Components

    Professional & Commercial Farming Use

    • Specification

    Equipment Name

    Nine Tyne Cultivator

    Over all Dimentions [mm]

    2160*890*1145mm

    Tractor HP Required

    Above 50hp

    Equipment Weight

    320kg

    No Of Tynes / Ridgers

    9

    Men Frame

    65*65*8mm Angle

    Frame Thickness

    8mm

    Tyne Thickness

    40mm

    Clamps Thickness

    20mm
