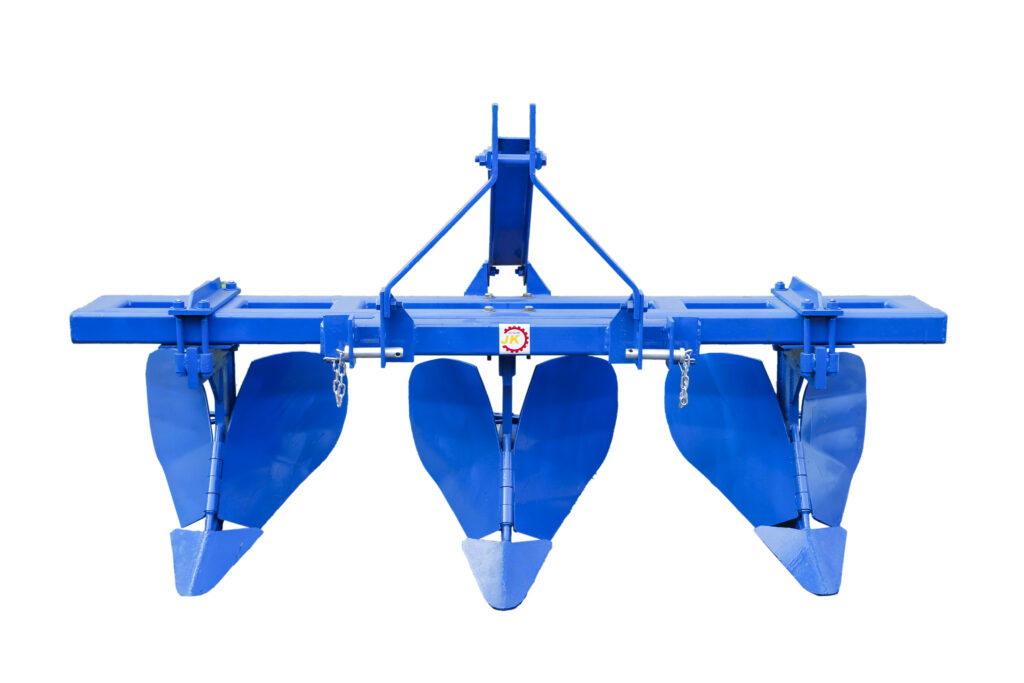

Three Bottom Ridger
The Three Bottom Ridger is a heavy-duty farm implement designed for tractors above 50 HP, ideal for forming multiple ridges in a single pass. Built with a robust 80×80×6 mm main frame and 6 mm thick mould boards, this ridger offers exceptional strength and durability. With three adjustable tynes set at a 3-foot spacing, it ensures efficient soil movement and well-structured ridges for crops like sugarcane, potato, and cotton. Its 310 kg weight provides the necessary ground grip for consistent performance in varied soil conditions.
Three Bottom Ridger
Ideal for crops like sugarcane, cotton, maize, potatoes, and other vegetables that require raised ridges for better root development and irrigation management.
By forming ridges, it enhances soil aeration and root zone development, creating an ideal bed for seeds.
- Features
Heavy Duty Construction
High Horsepower Compatibility
Optimal Ridge Spacing

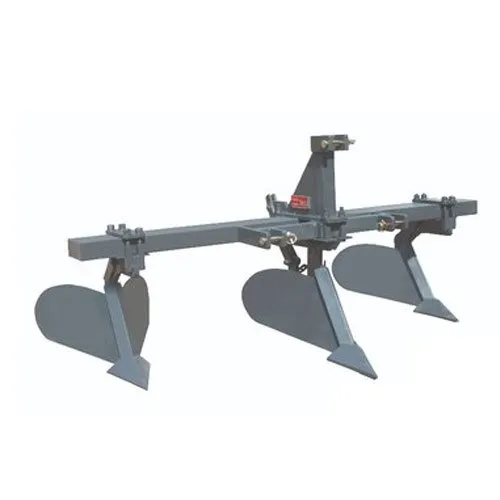

Triple Tyne Configuration
Thick Mould Board Design
- Specifications
Equipment Name | Three Bottom Ridger |
|---|---|
Over all Dimentions [mm] | 2135*1350*840mm |
Tractor HP Required | Above 50hp |
Equipment Weight | 310 kg |
Ridger Adjustment | 3 feet |
No Of Tynes / Ridgers | Three |
Men Frame | 80*80*6mm |
Frame Thickness | 6mm |
Mould Board thickness | 6mm |
