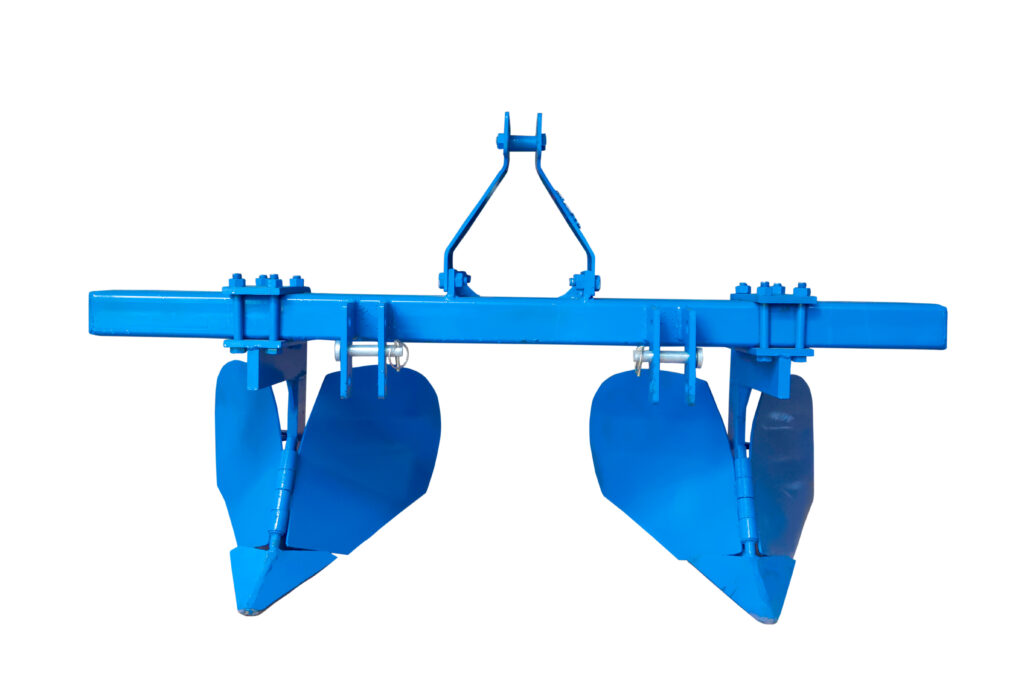

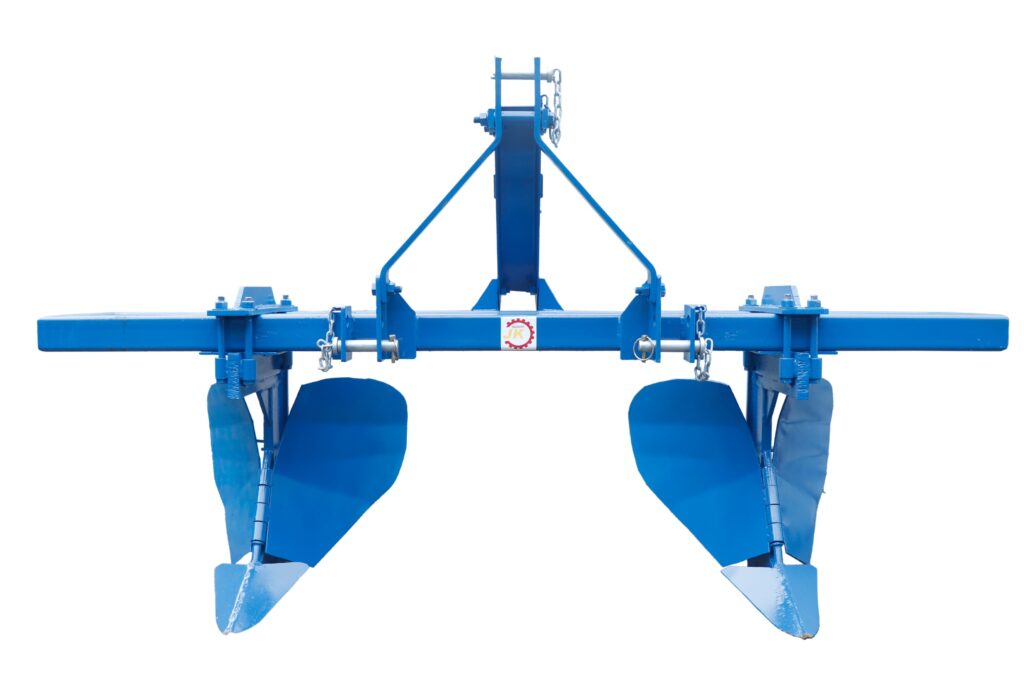

Two Bottom Ridger
The Two Bottom Ridger by J.K. Farm Equipment’s is a high performance, heavy duty implement designed specifically for creating ridges and furrows for row cultivation and water drainage. It plays a critical role in preparing land for crops like sugarcane, cotton, potatoes, maize, and vegetables, where defined spacing and soil elevation are necessary for healthy root development and moisture management.
Two Bottom Ridger
The Two Bottom Ridger is a robust and efficient land preparation implement designed for tractors above 45 HP. It features a durable main frame constructed from 80×80 mm pipes with 6 mm thickness, ensuring long-term performance under tough field conditions. The ridger has two strong tynes with a 25 mm thickness and 6 mm thick mould boards, providing excellent soil turning and ridge formation.
- Features
Heavy-Duty Construction
High Compatibility Powerful Tractors
Adjustable Working Width
Efficient Twin Tyne Design
Optimized Weight for Stability
- Specifications
Equipment Name | Two Bottom Ridger |
|---|---|
Over all Dimentions [mm] | 2135*1195*840 mm |
Tractor HP Required | Above 45 hp |
Equipment Weight | 250 kg |
Ridger Adjustment | 3 Feet to 6.5 Feet |
No Of Tynes / Ridgers | Two |
Men Frame | 80*80*6mm pipe |
Frame Thickness | 6mm |
Mould Board thickness | 6mm |
Tyne Thickness | 25mm |
